NAME

r.earthworks - Earthworks

KEYWORDS

SYNOPSIS

r.earthworks

r.earthworks --help

r.earthworks [-pr] elevation=name earthworks=name [volume=name] mode=string operation=string function=string [raster=name] [coordinates=east,north] [points=name] [lines=name] [z=float[,float,...]] [rate=float] [flat=float] [border=float] [--overwrite] [--help] [--verbose] [--quiet] [--ui]

Flags:

-p: Print volume
-r: Disable adaptive region
--overwrite: Allow output files to overwrite existing files
--help: Print usage summary
--verbose: Verbose module output
--quiet: Quiet module output
--ui: Force launching GUI dialog

Parameters:

elevation=name [required]: Input elevation raster; Input elevation raster
earthworks=name [required]: Output earthworks; Output elevation raster; Default: earthworks
volume=name: Output volume; Output volumetric change raster
mode=string [required]: Earthworking mode; Options: relative, absolute; Default: absolute; relative: Relative to exisiting topography; absolute: At given elevation
operation=string [required]: Earthworking operation; Options: cut, fill, cutfill; Default: cutfill; cut: Cut into topography; fill: Fill ontop topography; cutfill: Cut and fill
function=string [required]: Earthworking function; Options: linear, exponential; Default: linear; linear: linear decay function; exponential: Exponential decay function
raster=name: Input raster spot elevations; Input raster spot elevations
coordinates=east,north: Seed point coordinates; Seed point coordinates
points=name: Input points; Input points
lines=name: Input lines; Input lines
z=float[,float,...]: Elevation value; Elevation value; Default: 1.0
rate=float: Rate of decay; Rate of decay; Default: 0.1
flat=float: Radius of flats; Radius of flats; Default: 0.0
border=float: Border for adaptive region; Border for adaptive region; Default: 1000

DESCRIPTION
EXAMPLE
REFERENCES
AUTHORS

DESCRIPTION

r.earthworks models new landforms using cut and fill operations to add and remove earth from an elevation raster. It can be used to model topographic forms such as hills, pits, ridges, valleys, roads, dams, and levees. In cut operations earth is excavated from the elevation raster, while in fill operations earth is deposited on the elevation raster. In absolute mode earth is added or removed until the specified elevation is reached, while in relative mode earth is added or removed by a height relative to the existing terrain.

Inputs

The key inputs for r.earthworks are an existing elevation raster and a set of x-, y-, and z-values for the local minima and maxima of the new landforms. These values can be input as coordinates, points, lines, or a raster. For x- and y-coordinates, 2D points, and 2D lines, an input elevation parameter z must also be specified. This z parameter can be a single constant value or a list of values. Other input parameters for r.earthworks include operation, mode, function, rate, and flats. The operation parameter can be set to cut, fill, or cutfill mode to excavate, build, or excavate and build terrain. The mode parameter can be set to absolute or relative mode to use either zero or the exisiting elevation as a datum. In absolute mode, for example, a road would cut through or be built up on embankments over the exisiting terrain, while in relative mode a road would adapt to the terrain. The function parameter can be set to linear or exponential to define the slope from the local minima or maxima to the exisiting terrain. The rate parameter specifies the rate of growth and decay for a given slope function. For example a linear slope function with a rate of 0.1 will generate a 10 percent slope. The flats parameter specifies the radius of constant elevation around local minima or maxima. It can be used to model the flat surfaces of topopraphic features such as plateaus, lakes, roads, and levees.

Outputs

In addition to generating an earthworks raster with transformed elevation values, r.earthworks can also calculate the volume of cut and fill. Set the output volume raster to generate a volumetric change raster. Use the -p flag to print the net volume of cut and fill.

Adaptive Region

To speed computation, r.earthworks uses an adaptive region. The adaptive region limits earthworking operations to subregions containing input geometry. The adaptive region is grown by a border parameter which has a default value of a thousand map units. If this border is not large enough, then the earthworking operations may be incomplete with artifacts along their edges. If artifacts occur, then increase the size of the border. A larger border, however, will increase computation time. When the input elevation raster has a hundred thousand cells or more, an adaptive region is used by default, but can be disabled with flag -r. When the adaptive region is not used, it can take a long time to model extensive earthworks for large elevation rasters with a million cells or more.

EXAMPLE

Cut & Fill Operations

Perform basic cut and fill operations to model peaks and pits from x- and y-coordinates. Setup Set the computational region with g.region and then use map algebra to generate a flat terrain with r.mapcalc.

g.region n=500 s=0 e=500 w=0 res=1
r.mapcalc expression="elevation = 0"

Fill Operation Model a peak from a set of x- and y-coordinates with r.earthworks. Use the z parameter to set a z-coordinate for the top of the peak. Optionally use the flat parameter to create a plateau at the top of the peak.

r.earthworks elevation=elevation earthworks=peak operation=fill coordinates=250,250 z=50 rate=0.5 flat=50

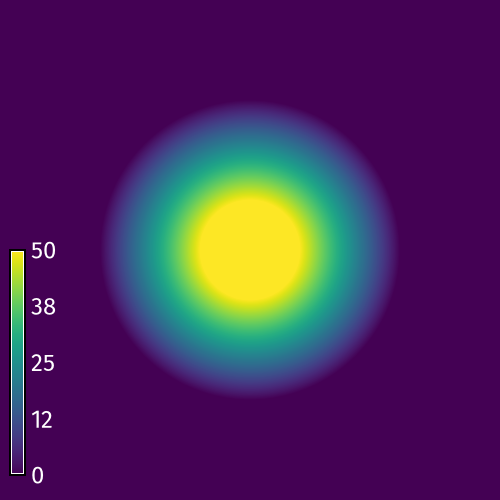

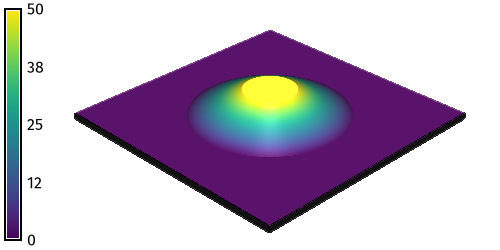

Figure: Fill operation

Cut Operation Model a pit from a set of x- and y-coordinates with *r.earthworks*. Set a z-coordinate for the bottom of the pit.

r.earthworks elevation=elevation earthworks=pit operation=cut coordinates=250,250 z=-50 rate=0.5 flat=50

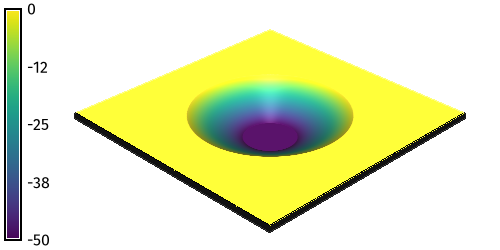

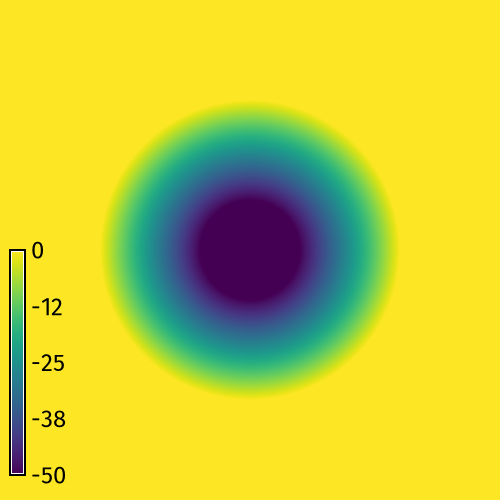

Figure: Cut operation

Cut & Fill Operation Model a pit and a peak from two sets of x- and y-coordinates with r.earthworks. Set a z-coordinate for the bottom of the pit and another z-coordinate for the top of the peak.

r.earthworks elevation=elevation earthworks=peak_and_pit operation=cutfill coordinates=180,180,320,320 z=-50,50 rate=0.5 flat=50

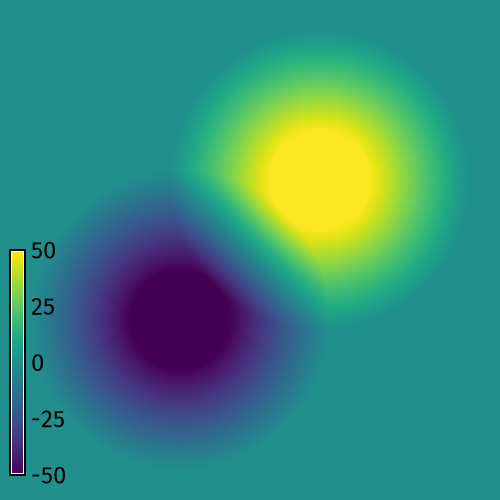

Figure: Cut & fill operation

Road Grading

Use a vector map of a road network to grade a road crossing over a valley. Start GRASS in the North Carolina basic dataset. First set the computation region with g.region. Then run r.earthworks with input elevation set to elevation, input lines set to roadsmajor, z set to 95, operation set to fill, rate set to 0.25, and flat set to 25. This will grade an embankment through the valley with a 50 meter wide roadway at a constant elevation of 95 meters with side slopes of 25 percent. Optionally, compute contours with r.contour.

g.region n=217700 s=216200 w=639200 e=640700 res=10
r.earthworks elevation=elevation earthworks=earthworks lines=roadsmajor z=95 rate=0.25 operation=fill flat=25
r.contour input=earthworks output=contours step=2

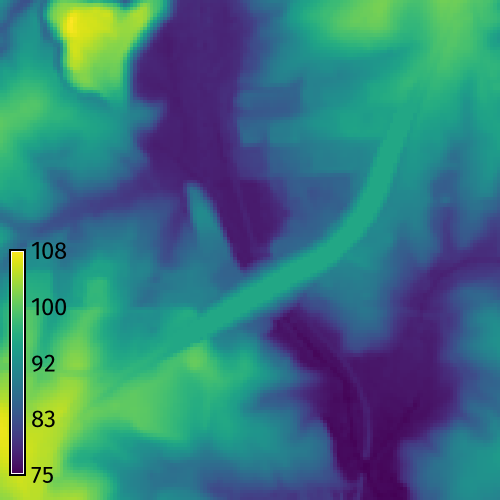

Figure: Elevation and earthworks

Dam Breach Modeling

Model a flood due to a dam breach. Use r.earthworks to breach the dam and then use r.lake to model the maximum possible extent and depth of flooding.

g.region n=223740 s=222740 w=634450 e=635450 res=10

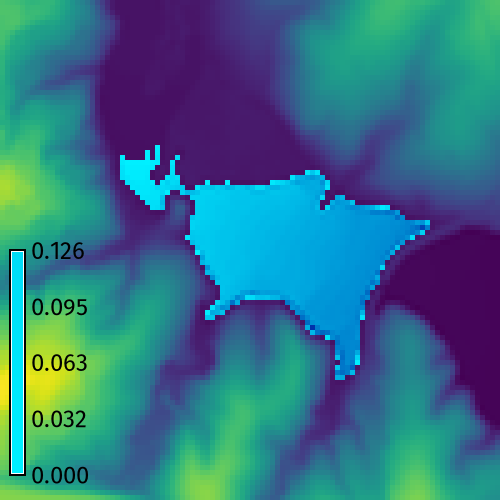

r.lake elevation=elevation water_level=104 lake=lake coordinates=635150.7489931877,223203.9595016748
r.earthworks elevation=elevation operation=cut coordinates=635235.4648198467,223210.9879314204 z=103 rate=0.5 flat=20

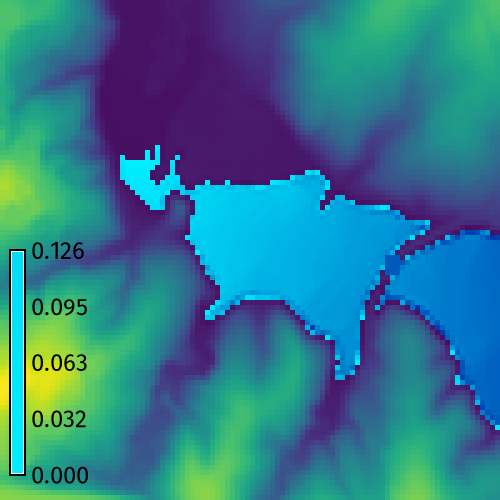

r.lake --overwrite elevation=earthworks water_level=104 lake=lake coordinates=635150.7489931877,223203.9595016748
