NAME

r.timeofconcentration - Computes per-cell time of concentration (Tc) using the Kirpich equation from longest upstream flow-path length and path-average slope.

KEYWORDS

raster, hydrology, time of concentration, SCS

SYNOPSIS

r.timeofconcentration

r.timeofconcentration --help

r.timeofconcentration elevation=name direction=name streams=name time_concentration=name [outlets=name] [slope_min=float] [length_min=float] [vertical_units=string] [factor=float] [length=name] [drop=name] [sbar=name] [--overwrite] [--help] [--verbose] [--quiet] [--ui]

Flags:

--overwrite: Allow output files to overwrite existing files
--help: Print usage summary
--verbose: Verbose module output
--quiet: Quiet module output
--ui: Force launching GUI dialog

Parameters:

elevation=name [required]: Name of input elevation raster map [m]
direction=name [required]: Name of input flow direction raster map (from r.watershed or r.stream.extract)
streams=name [required]: Name of input stream raster map consistent with 'direction' (from r.watershed or r.stream.extract)
time_concentration=name [required]: Name for output time of concentration raster map [hours]
outlets=name: Name of optional input outlets raster map; when set, Tc is reported only at these cells
slope_min=float: Minimum path-average slope (unitless) to avoid division by zero on flats; Default: 1e-4
length_min=float: Minimum upstream flow-path length to report Tc [m]; Default: 10
vertical_units=string: Vertical units of elevation raster (converted to meters internally); Options: meters, feet, factor; Default: meters
factor=float: Conversion factor to meters when vertical_units=factor (ensure factor * units = meters)
length=name: Name for optional output longest upstream flow-path length raster map L [m]
drop=name: Name for optional output flow-path elevation drop raster map delta_z (>= 0) [m]
sbar=name: Name for optional output path-average slope raster map S_bar = max(delta_z / L, slope_min) [unitless]

DESCRIPTION
- Inputs
- Outputs
Notes
EXAMPLE
REFERENCES
SEE ALSO
AUTHORS

DESCRIPTION

r.timeofconcentration generates a raster map of time of concentration (Tc) [h] for each cell, using the Kirpich equation based on the longest upstream flow-path length and path-average slope. This method, rooted in hydrologic practice, estimates how long it takes water to travel from the farthest point in a watershed to a given cell, aiding in runoff and flood analysis. The tool leverages elevation and flow direction data, optionally deriving streams if not provided, and supports diagnostic outputs like flow length and slope. All measurements use metric units ([m], [h]).

It simplifies water travel time estimation for high-level watershed planning: water flows downhill along paths defined by terrain, and Tc reflects the slowest route’s duration, influenced by distance and slope steepness. This is key for understanding how quickly runoff reaches streams or outlets.

Inputs

elevation: Raster of elevation [m]. Required input to derive terrain slopes and flow paths.

direction: Flow-direction raster (GRASS-coded; from r.watershed or r.stream.extract). Required to trace upstream flow paths; defines the drainage network for accumulation.

streams: Stream raster and must be consistent with direction (i.e., produced from the same run of r.watershed or from r.stream.extract on the same DEM).

outlets: Optional raster of outlet points; Tc is computed only at these cells (NULL elsewhere), respecting the current mask/region.

slope_min: Minimum path-average slope [unitless] (10^{-4} default). Prevents division by zero on flat areas by setting a floor value.

length_min: Minimum upstream flow-path length [m] (10 default). Ensures Tc is reported only where flow paths are significant.

vertical_units: optional parameter that defines the vertical units of the elevation raster. It accepts three values: meters, feet, or factor, and defaults to meters. When vertical_units=meters, no conversion is applied. When vertical_units=feet, elevation drops are multiplied by 1/3.28084 to convert them to meters. When vertical_units=factor, the module multiplies elevation drops by the user-supplied factor.

factor: Required only when vertical_units=factor. It must convert the user’s vertical unit to meters (factor × <your vertical unit> = meters), and the user is responsible for providing the correct factor.

Outputs

output: A raster map of time of concentration per cell [h], computed using the Kirpich equation:

$$
T_c \;=\; \frac{K \cdot L^a \cdot S_{\text{avg}}^b}{60}
$$

where L is upstream flow-path length [m], S_{\text{avg}} is path-average slope [unitless], K = 0.01947, a = 0.77, b = -0.385 are Kirpich constants, and the result is converted from minutes to hours by dividing by 60. Tc is NULL if L < length_min or outlets are undefined.

length: Optional output raster of longest upstream flow-path length per cell [m], derived from r.stream.distance.

drop: Optional output raster of flow-path elevation drop per cell [m] (≥ 0), computed as the maximum elevation difference.

sbar: Optional raster of path-average slope per cell [unitless], calculated as S_{\text{avg}} = \max(\frac{\Delta z}{L}, \text{slope}_\text{min}), where \Delta z is the drop and L is the length.

Notes

CRS-aware distance r.stream.distance returns lengths in meters, even if the CRS is geographic or projected (meters or feet).
Static Tc Tc is a steady-state estimate; no temporal routing or storage is modeled.

EXAMPLE

These examples use the North Carolina sample dataset.

Calculate time of concentration using r.watershed and r.timeofconcentration:

# set the region
g.region -p raster=elevation

# calculate positive flow accumulation and drainage directions using r.watershed
r.watershed -sa elevation=elevation drainage=fdr stream=str threshold=10

# compute the time of concentration
r.timeofconcentration elevation=elevation direction=fdr streams=str tc=tc_nc

# use length_min parameter for coarser tc on important streams only
r.timeofconcentration elevation=elevation direction=fdr streams=str tc=tc_nc_250 length_min=250

# if the vertical units of the DEM are in feet
r.timeofconcentration elevation=elevation vunits=feet dir=fdr str=str tc=tc

# if the vertical units of the DEM are in units other than meters or feet (e.g., cm)
r.timeofconcentration elevation=elevation vunits=factor factor=0.01 dir=fdr str=str tc=tc

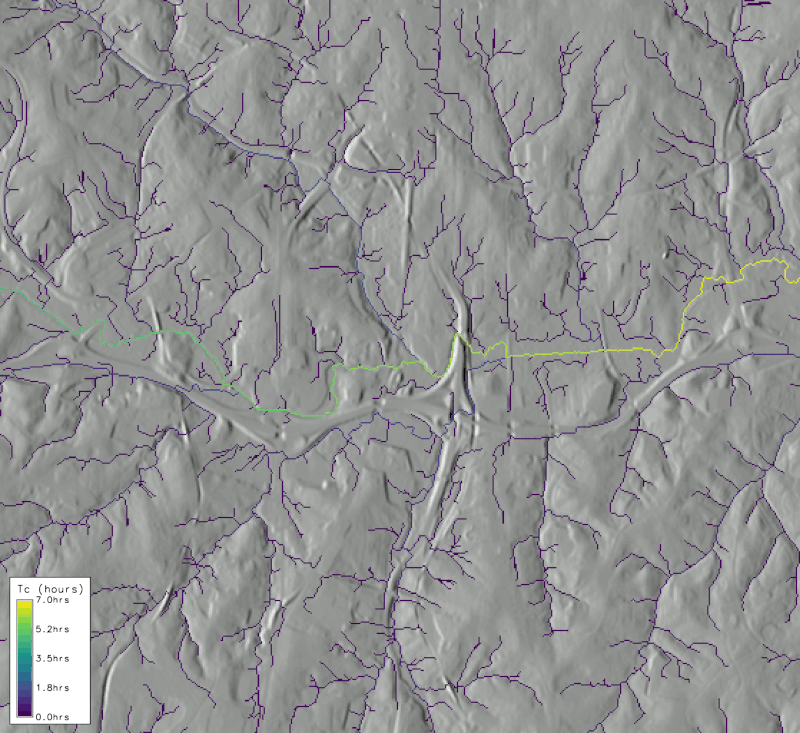

r_timeofconcentration example
Figure: Output from r.timeofconcentration with length_min=250 on NC dataset zoomed near the watershed outlet

REFERENCES

Kirpich, Z. P. (1940). Time of concentration of small agricultural watersheds. Civil Eng., 10(6), 362.
United States Department of Agriculture, Natural Resources Conservation Service. (2008). National Engineering Handbook, Part 630 Hydrology: Chapter 15 – Time of Concentration (210-VI-NEH)

AUTHORS

Abdullah Azzam (CLAWRIM, Department of Civil and Environmental Engineering, New Mexico State University)
