r.upflowlength

Calculates upstream flow length from a flow direction raster map using the Memory-Efficient Upstream Flow Length (MEUFL) OpenMP parallel algorithm by Cho (2026).

Command linePython (grass.tools)Python (grass.script)

r.upflowlength input=name format=string [encoding=string] output=name [nprocs=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

r.upflowlength input=name format=auto output=name

grass.tools.Tools.r_upflowlength(input, format="auto", encoding=None, output, nprocs=0, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

tools = Tools()
tools.r_upflowlength(input="name", format="auto", output="name")

This grass.tools API is experimental in version 8.5 and expected to be stable in version 8.6.

grass.script.run_command("r.upflowlength", input, format="auto", encoding=None, output, nprocs=0, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

gs.run_command("r.upflowlength", input="name", format="auto", output="name")

Parameters

Command linePython (grass.tools)Python (grass.script)

input=name [required]
    Name of input flow direction raster map
format=string [required]
    Format of input flow direction raster map
    Allowed values: auto, degree, 45degree, power2, taudem, custom
    Default: auto
    auto: auto-detect direction format except taudem
    degree: degrees CCW from East
    45degree: degrees CCW from East divided by 45 (e.g. r.watershed)
    power2: powers of 2 CW from East (e.g., r.terraflow, ArcGIS)
    taudem: 1-8 for E-SE CCW, not auto-detected (e.g., TauDEM D8FlowDir)
    custom: use encoding
encoding=string
    Flow direction encoding for custom format
    Eight integers for E,SE,S,SW,W,NW,N,NE
output=name [required]
    Name for output longest flow paths vector map
nprocs=integer
    Number of threads for parallel computing
    0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs
    Default: 0
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

input : str | np.ndarray, required
    Name of input flow direction raster map
    Used as: input, raster, name
format : str, required
    Format of input flow direction raster map
    Allowed values: auto, degree, 45degree, power2, taudem, custom
    auto: auto-detect direction format except taudem
    degree: degrees CCW from East
    45degree: degrees CCW from East divided by 45 (e.g. r.watershed)
    power2: powers of 2 CW from East (e.g., r.terraflow, ArcGIS)
    taudem: 1-8 for E-SE CCW, not auto-detected (e.g., TauDEM D8FlowDir)
    custom: use encoding
    Default: auto
encoding : str, optional
    Flow direction encoding for custom format
    Eight integers for E,SE,S,SW,W,NW,N,NE
output : str | type(np.ndarray) | type(np.array) | type(gs.array.array), required
    Name for output longest flow paths vector map
    Used as: output, raster, name
nprocs : int, optional
    Number of threads for parallel computing
    0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs
    Default: 0
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

Returns:

result : grass.tools.support.ToolResult | np.ndarray | tuple[np.ndarray] | None
If the tool produces text as standard output, a ToolResult object will be returned. Otherwise, None will be returned. If an array type (e.g., np.ndarray) is used for one of the raster outputs, the result will be an array and will have the shape corresponding to the computational region. If an array type is used for more than one raster output, the result will be a tuple of arrays.

Raises:

grass.tools.ToolError: When the tool ended with an error.

input : str, required
    Name of input flow direction raster map
    Used as: input, raster, name
format : str, required
    Format of input flow direction raster map
    Allowed values: auto, degree, 45degree, power2, taudem, custom
    auto: auto-detect direction format except taudem
    degree: degrees CCW from East
    45degree: degrees CCW from East divided by 45 (e.g. r.watershed)
    power2: powers of 2 CW from East (e.g., r.terraflow, ArcGIS)
    taudem: 1-8 for E-SE CCW, not auto-detected (e.g., TauDEM D8FlowDir)
    custom: use encoding
    Default: auto
encoding : str, optional
    Flow direction encoding for custom format
    Eight integers for E,SE,S,SW,W,NW,N,NE
output : str, required
    Name for output longest flow paths vector map
    Used as: output, raster, name
nprocs : int, optional
    Number of threads for parallel computing
    0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs
    Default: 0
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

DESCRIPTION

r.upflowlength calculates upstream flow length using the Memory-Efficient Upstream Flow Length OpenMP parallel algorithm by Cho (2026).

NOTES

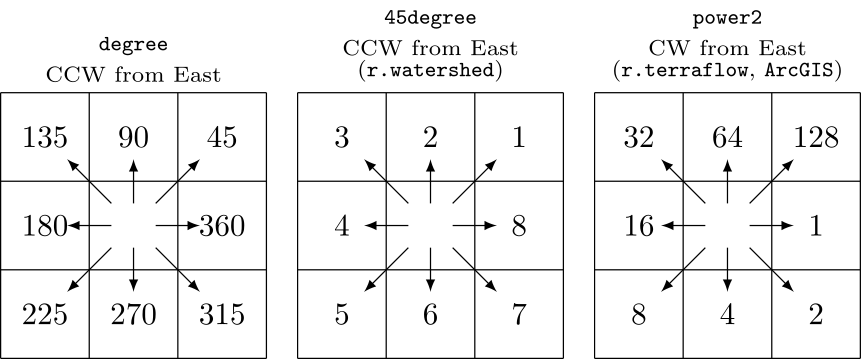

r.upflowlength can automatically recognize the following three different formats of flow directions: degree, 45degree, and power2. The degree format starts just above 0° at East (excluding 0° itself) and goes counterclockwise up to 360°, which also corresponds to East. The 45degree format divides the degree format by 45°. The power2 format starts from 1 at East and doubles clockwise up to Northeast.

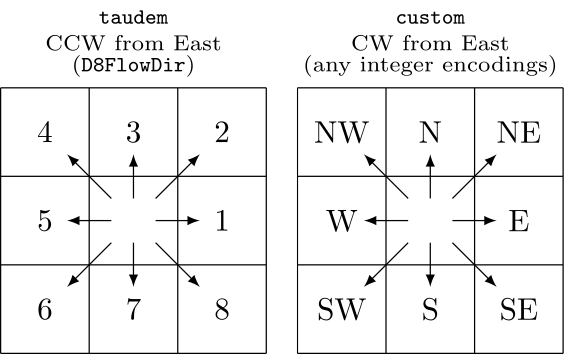

r.upflowlength also supports the taudem format, which is used by TauDEM's D8FlowDir. This format is not auto-detected because it shares the same encoding range of the 45degree format. Additionally, the module can accept any integer encodings with the custom format and encoding option, which uses eight numbers for E, SE, S, SW, W, NW, N, and NE. For example, to encode the 45degree format using this method, one can use format=custom encoding=8,7,6,5,4,3,2,1.

When parallel processing is enabled with the nprocs option, r.upflowlength uses OpenMP's shared-memory model and the specified number of threads to parallelize the computation.

EXAMPLES

These examples use the North Carolina sample dataset.

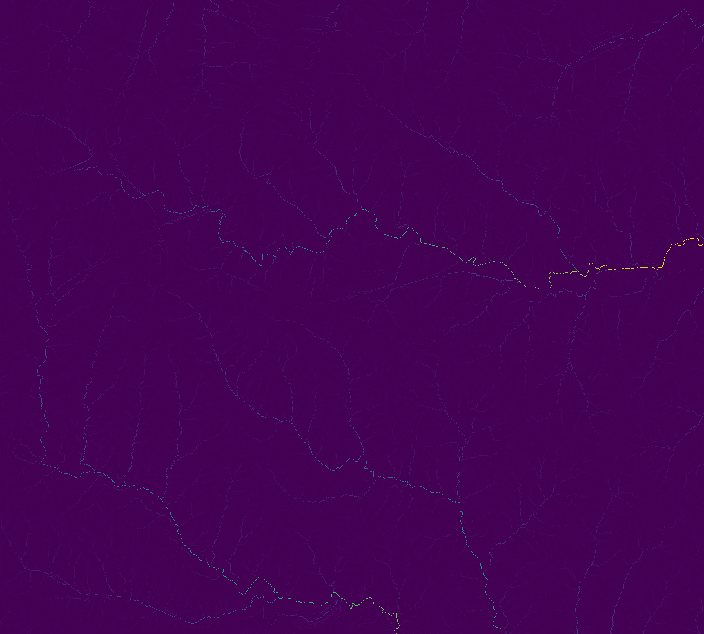

Extract all draining cells (all outlets for the elevation raster), and calculate all watersheds and longest flow paths:

# set computational region
g.region -ap rast=elevation

# calculate drainage directions using r.watershed
r.watershed -s elev=elevation drain=drain

# calculate upstream flow length
r.upflowlength input=drain output=uflen

# or using a custom format for r.watershed drainage (8-1 for E-NE CW)
r.upflowlength input=drain format=custom encoding=8,7,6,5,4,3,2,1 output=uflen2

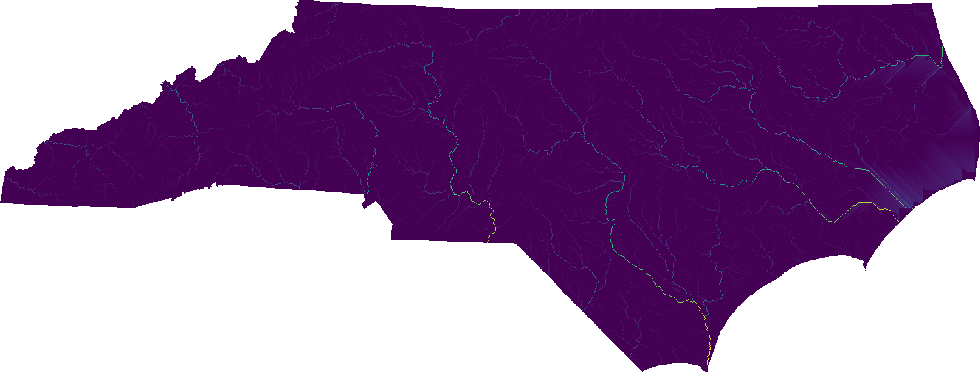

Perform the same analysis using the statewide DEM, elev_state_500m:

# set computational region
g.region -ap rast=elev_state_500m

# calculate drainage directions using r.watershed
r.watershed -s elev=elev_state_500m drain=nc_drain

# calculate upstream flow length
r.upflowlength input=nc_drain output=nc_uflen

# or using a custom format for r.watershed drainage (8-1 for E-NE CW)
r.upflowlength input=nc_drain format=custom encoding=8,7,6,5,4,3,2,1 output=nc_uflen2

REFERENCES

Huidae Cho, Accepted in May 2026. Flow in Float: Memory-Efficient Upstream Flow Length Parallel Computation Using an IEEE-754–Based Union Encoding. Environmental Modelling & Software.

AUTHOR

Huidae Cho (CLAWRIM, New Mexico State University)

SOURCE CODE

Available at: r.upflowlength source code (history)
Latest change: Wednesday Jun 03 04:04:29 2026 in commit 886c245
