NAME

r.in.ahn - Imports the 0.5 meter resolution dtm or dsm from the AHN (Actueel Hoogtebestand Nederland (AHN), version 4.

KEYWORDS

dem, raster, import

SYNOPSIS

r.in.ahn
r.in.ahn --help
r.in.ahn [-tg] product=string output=name [--overwrite] [--help] [--verbose] [--quiet] [--ui]

Flags:

-t
Download whole tiles
Download the selected product for the AHN tile that overlap with the current region. If enabled, a vector layer with the bounds of the AHN tiles will be saved, using the output name with as suffix _tiles
-g
Set to original computational region
After downloading and importing the requested layer, set the region back to the original computation region.
--overwrite
Allow output files to overwrite existing files
--help
Print usage summary
--verbose
Verbose module output
--quiet
Quiet module output
--ui
Force launching GUI dialog

Parameters:

product=string [required]
product
Choose which product to download (dsm or dtm)
Options: dsm, dtm
output=name [required]
Name for output raster map

Table of contents

DESCRIPTION

r.in.ahn imports the Actueel Hoogtebestand Nederland (AHN, version 4) for the current region. The AHN is a digital elevation model (DEM) of the Netherlands with a resolution of of 0.5 meter.

There are two different layers available: the digital terrain model (DTM) and a digital surface model (DSM). The user needs to select which to download. The selected product will be downloaded for the computation region. However, note that the region will adjusted to ensure that the imported raster layer neatly aligns with and has the same resolution (0.5 meter) as the original AHN data. The resulting will always have the same or a larger extent than the original computation region. If you want to store the current computational region, make sure to first save it using g.region.

The AHN can also be downloaded in map sheets (tiles) of 6.5 by 5 kilometer. To download the area covered by one or more of these tiles, the user can set the -t flag. This wil to download the area for the tiles that overlap with the current computational region.

NOTE

This location only works in a location with the project 'RD New' (EPSG:28992). Attempts to run it in a location with another CRS will result in an error message.

The region will be adjusted to ensure that the imported raster layer neatly aligns with and has the same resolution (0.5 meter) as the original AHN data. The user can set the -g flag to return the region to the original computation region after the data is imported.

The addon uses the r.in.wcs addon in the background, so the user will first need to install this addon.

EXAMPLE

Example 1

Import the DTM for Fort Crèvecoeur, an fortress where the river Old Dieze flows into the Maas river.

# Set the region for Fort Crèvecoeur
g.region n=416562 s=415957 w=145900 e=147003 res=0.5

# Download the DSM
r.in.ahn product=dsm output=dsm_crevecoeur

r.in.ahn example

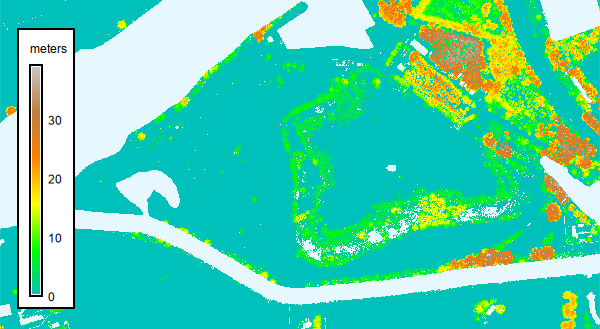

Figure: DSM map of Fort Crèvecoeur

Example 2

Import the DTM for the tile that overlaps with the current region. Do this by setting the -t flag.

# Set the region for Fort Crèvecoeur
g.region n=416562 s=415957 w=145900 e=147003 res=0.5

# Download the DSM
r.in.ahn -t product=dsm output=dsm_crevecoeur2

The result will be a raster layer dsm_crevecoeur2 and a vector layer dsm_crevecoeur2_tiles

r.in.ahn example
Figure: DSM map of Fort Crèvecoeur. Left shows the extent (red outline) after running example 2. The extent equals the extent of the area (tile) for which the data was downloaded. Right shows the extent (red outline) after running example 3. In this case, the extent is the same as before running the example because the -g flag was set.

Example 3

Set the -t flag to import the DTM for the tile that overlaps with the current region. Set the -g flag to keep the current computation region after importing the requested data. Note, the imported data will still have the resolution of, and will be aligned to, the original AHN data.

# Set the region for Fort Crèvecoeur
g.region n=416562 s=415957 w=145900 e=147003 res=0.5

# Download the DSM
r.in.ahn -t -g product=dsm output=dsm_crevecoeur3

The result will be a raster layer dsm_crevecoeur3 and a vector layer dsm_crevecoeur3_tiles

REFERENCES

See the AHN webpage for more information about the AHN data (in Dutch).

AUTHORS

Paulo van Breugel | HAS green academy, University of Applied Sciences | Climate-robust Landscapes research group | Innovative Bio-Monitoring research group | Contact: Ecodiv.earth

SOURCE CODE

Available at: r.in.ahn source code (history)

Latest change: Sunday Aug 18 16:05:40 2024 in commit: f9d320e265329f9ec47c8a5ff0ce4876aa53e3e0
