r.dem.icp

Co-register DEM surfaces using Iterative Closest Point (point-to-plane).

Aligns a source DEM to a reference DEM with robust, multi-scale ICP.

r.dem.icp reference=name source=name output=name [mask=name] [dof=integer] [levels=integer] [stride=integer] [max_iterations=integer] [trim=float] [huber=float] [tolerance=float] [distance_max=float] [slope_max=float] [init_dx=float] [init_dy=float] [init_dz=float] [init_yaw=float] [init_roll=float] [init_pitch=float] [transform_out=name] [stats_out=name] [nprocs=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

r.dem.icp reference=name source=name output=name

grass.tools.Tools.r_dem_icp(reference, source, output, mask=None, dof=4, levels=3, stride=2, max_iterations=30, trim=0.80, huber=1.0, tolerance=1e-5, distance_max=10, slope_max=90, init_dx=0, init_dy=0, init_dz=0, init_yaw=0, init_roll=0, init_pitch=0, transform_out=None, stats_out=None, nprocs=0, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

tools = Tools()
tools.r_dem_icp(reference="name", source="name", output="name")

This grass.tools API is experimental in version 8.5 and expected to be stable in version 8.6.

grass.script.run_command("r.dem.icp", reference, source, output, mask=None, dof=4, levels=3, stride=2, max_iterations=30, trim=0.80, huber=1.0, tolerance=1e-5, distance_max=10, slope_max=90, init_dx=0, init_dy=0, init_dz=0, init_yaw=0, init_roll=0, init_pitch=0, transform_out=None, stats_out=None, nprocs=0, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

gs.run_command("r.dem.icp", reference="name", source="name", output="name")

Parameters

reference=name [required]
    Reference DEM raster
source=name [required]
    Source DEM raster to align
output=name [required]
    Output aligned DEM raster
mask=name
    Optional stable-terrain mask (non-zero=use)
dof=integer
    Degrees of freedom (4: dx,dy,dz,yaw; 6: add roll,pitch - experimental)
    Allowed values: 4, 6
    Default: 4
levels=integer
    ICP pyramid levels (coarse to fine)
    Default: 3
stride=integer
    Base sampling stride (cells) at finest level
    Default: 2
max_iterations=integer
    Max iterations per level
    Default: 30
trim=float
    Trimmed ICP keep fraction [0-1]
    Default: 0.80
huber=float
    Huber delta (m); 0 disables
    Default: 1.0
tolerance=float
    Convergence threshold on parameter update norm
    Default: 1e-5
distance_max=float
    Max point-to-plane distance (m); 0 disables
    Default: 10
slope_max=float
    Reject target cells with slope > (deg)
    Default: 90
init_dx=float
    Initial dx (m)
    Default: 0
init_dy=float
    Initial dy (m)
    Default: 0
init_dz=float
    Initial dz (m)
    Default: 0
init_yaw=float
    Initial yaw (deg)
    Default: 0
init_roll=float
    Initial roll (deg) (6-DoF only)
    Default: 0
init_pitch=float
    Initial pitch (deg) (6-DoF only)
    Default: 0
transform_out=name
    Write final transform to file
stats_out=name
    Write per-iteration stats to file
nprocs=integer
    Number of threads for parallel computing
    0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs
    Default: 0
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

reference : str | np.ndarray, required
    Reference DEM raster
    Used as: input, raster, name
source : str | np.ndarray, required
    Source DEM raster to align
    Used as: input, raster, name
output : str | type(np.ndarray) | type(np.array) | type(gs.array.array), required
    Output aligned DEM raster
    Used as: output, raster, name
mask : str | np.ndarray, optional
    Optional stable-terrain mask (non-zero=use)
    Used as: input, raster, name
dof : int, optional
    Degrees of freedom (4: dx,dy,dz,yaw; 6: add roll,pitch - experimental)
    Allowed values: 4, 6
    Default: 4
levels : int, optional
    ICP pyramid levels (coarse to fine)
    Default: 3
stride : int, optional
    Base sampling stride (cells) at finest level
    Default: 2
max_iterations : int, optional
    Max iterations per level
    Default: 30
trim : float, optional
    Trimmed ICP keep fraction [0-1]
    Default: 0.80
huber : float, optional
    Huber delta (m); 0 disables
    Default: 1.0
tolerance : float, optional
    Convergence threshold on parameter update norm
    Default: 1e-5
distance_max : float, optional
    Max point-to-plane distance (m); 0 disables
    Default: 10
slope_max : float, optional
    Reject target cells with slope > (deg)
    Default: 90
init_dx : float, optional
    Initial dx (m)
    Default: 0
init_dy : float, optional
    Initial dy (m)
    Default: 0
init_dz : float, optional
    Initial dz (m)
    Default: 0
init_yaw : float, optional
    Initial yaw (deg)
    Default: 0
init_roll : float, optional
    Initial roll (deg) (6-DoF only)
    Default: 0
init_pitch : float, optional
    Initial pitch (deg) (6-DoF only)
    Default: 0
transform_out : str, optional
    Write final transform to file
    Used as: output, file, name
stats_out : str, optional
    Write per-iteration stats to file
    Used as: output, file, name
nprocs : int, optional
    Number of threads for parallel computing
    0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs
    Default: 0
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

Returns:

result : grass.tools.support.ToolResult | np.ndarray | tuple[np.ndarray] | None
If the tool produces text as standard output, a ToolResult object will be returned. Otherwise, None will be returned. If an array type (e.g., np.ndarray) is used for one of the raster outputs, the result will be an array and will have the shape corresponding to the computational region. If an array type is used for more than one raster output, the result will be a tuple of arrays.

Raises:

grass.tools.ToolError: When the tool ended with an error.

reference : str, required
    Reference DEM raster
    Used as: input, raster, name
source : str, required
    Source DEM raster to align
    Used as: input, raster, name
output : str, required
    Output aligned DEM raster
    Used as: output, raster, name
mask : str, optional
    Optional stable-terrain mask (non-zero=use)
    Used as: input, raster, name
dof : int, optional
    Degrees of freedom (4: dx,dy,dz,yaw; 6: add roll,pitch - experimental)
    Allowed values: 4, 6
    Default: 4
levels : int, optional
    ICP pyramid levels (coarse to fine)
    Default: 3
stride : int, optional
    Base sampling stride (cells) at finest level
    Default: 2
max_iterations : int, optional
    Max iterations per level
    Default: 30
trim : float, optional
    Trimmed ICP keep fraction [0-1]
    Default: 0.80
huber : float, optional
    Huber delta (m); 0 disables
    Default: 1.0
tolerance : float, optional
    Convergence threshold on parameter update norm
    Default: 1e-5
distance_max : float, optional
    Max point-to-plane distance (m); 0 disables
    Default: 10
slope_max : float, optional
    Reject target cells with slope > (deg)
    Default: 90
init_dx : float, optional
    Initial dx (m)
    Default: 0
init_dy : float, optional
    Initial dy (m)
    Default: 0
init_dz : float, optional
    Initial dz (m)
    Default: 0
init_yaw : float, optional
    Initial yaw (deg)
    Default: 0
init_roll : float, optional
    Initial roll (deg) (6-DoF only)
    Default: 0
init_pitch : float, optional
    Initial pitch (deg) (6-DoF only)
    Default: 0
transform_out : str, optional
    Write final transform to file
    Used as: output, file, name
stats_out : str, optional
    Write per-iteration stats to file
    Used as: output, file, name
nprocs : int, optional
    Number of threads for parallel computing
    0: use OpenMP default; >0: use nprocs; <0: use MAX-nprocs
    Default: 0
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

DESCRIPTION

r.dem.icp performs constrained-rigid (4-DoF) co-registration of two DEM rasters, with an experimental full 6-DoF mode, aligning a source DEM to a reference DEM with an Iterative Closest Point (ICP) solver. Key properties of the implementation:

  • Point-to-plane ICP with projective correspondences (the target DEM is sampled at the transformed (x, y) location).
  • Multiscale, coarse-to-fine alignment via an adjustable sampling stride.
  • Trimmed ICP (keep the best residual fraction) with Huber robust weighting.
  • OpenMP parallelization of the main loops.
  • DEM-specific handling: surface normals from DEM gradients, an optional slope limit, and an optional stable-terrain mask.

NOTES

  • Initialization: If you already know an approximate horizontal shift or yaw (for example from metadata or phase correlation), pass it via the init_dx, init_dy, init_dz, and init_yaw options. A good init_dz is often the median of source - reference over stable terrain. In the experimental 6-DoF mode, init_roll and init_pitch (degrees) additionally seed the roll and pitch angles; they are ignored with dof=4.
  • Speed knobs: Increase stride and reduce levels for quick tests, and relax max_iterations.
  • Robustness: Use a conservative trim (0.6-0.9). Where there is a lot of real change (landslides, forest canopy), lower trim and/or huber.
  • Constraints: 4-DoF (dof=4) is the supported mode and usually suffices (e.g., airborne photogrammetry vs LiDAR). The four solved parameters are the three translations plus yaw (planimetric rotation about the vertical axis), which absorbs residual georeferencing rotation; roll and pitch are deliberately excluded. 6-DoF (dof=6) is experimental: rigid roll/pitch rotation is ill-conditioned for height-field DEMs and its resample is approximate, so leave it off unless you specifically need to model tilt. The residual that typically remains after 4-DoF is a sub-pixel horizontal shift and vertical offset; remove it by running r.dem.nk (Nuth & Kaeaeb) after ICP.
  • Validation: After alignment, inspect the residual DoD and the stats file; residual bias should be near zero on stable terrain.

EXAMPLES

The commands below use the example scene built in the r.dem toolset manual, which is derived from the North Carolina sample dataset. Build it there first.

Align the misregistered surface with four degrees of freedom, which solves three translations and yaw:

g.region raster=elev_lid792_1m

r.dem.icp source=dsm_offset reference=elev_lid792_1m \
    mask=stable_terrain output=dsm_icp dof=4 \
    transform_out=icp_transform.txt stats_out=icp_stats.csv

The reported transform is the one that maps the source onto the reference, so its signs are opposite to those of r.dem.nk. Against an applied offset of 0.4596 m east, 0.4596 m north, and 1.32 m up it returns:

tx=-0.4590844708
ty=-0.4608043693
tz=-1.3201388046
yaw=0.0000935114

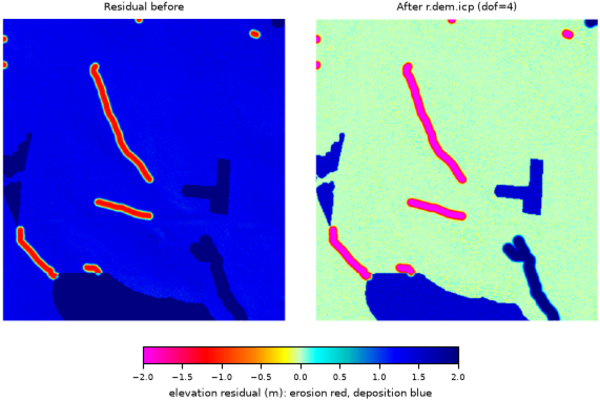

r.dem.icp example
Figure: Stable-terrain residual before and after r.dem.icp at dof=4.

REFERENCES

  • ICP framework (point-to-point origin). Besl, P.J. and McKay, N.D. (1992). A method for registration of 3-D shapes. IEEE Transactions on Pattern Analysis and Machine Intelligence, 14(2), 239-256. doi:10.1109/34.121791
  • Point-to-plane error metric (minimized here). Chen, Y. and Medioni, G. (1992). Object modelling by registration of multiple range images. Image and Vision Computing, 10(3), 145-155. doi:10.1016/0262-8856(92)90066-C
  • Projective correspondences (target sampled at the transformed x, y). Blais, G. and Levine, M.D. (1995). Registering multiview range data to create 3D computer objects. IEEE Transactions on Pattern Analysis and Machine Intelligence, 17(8), 820-824. doi:10.1109/34.400574
  • Efficient ICP variants (sampling, rejection, coarse-to-fine). Rusinkiewicz, S. and Levoy, M. (2001). Efficient variants of the ICP algorithm. Proceedings Third International Conference on 3-D Digital Imaging and Modeling (3DIM), 145-152. doi:10.1109/IM.2001.924423
  • Linearized least-squares point-to-plane solve. Low, K.-L. (2004). Linear least-squares optimization for point-to-plane ICP surface registration. Technical Report TR04-004, Department of Computer Science, University of North Carolina at Chapel Hill. PDF
  • Trimmed ICP (robust to partial overlap and change). Chetverikov, D., Stepanov, D. and Krsek, P. (2005). Robust Euclidean alignment of 3D point sets: the trimmed iterative closest point algorithm. Image and Vision Computing, 23(3), 299-309. doi:10.1016/j.imavis.2004.05.007
  • Robust M-estimator weighting. Huber, P.J. (1964). Robust estimation of a location parameter. The Annals of Mathematical Statistics, 35(1), 73-101. doi:10.1214/aoms/1177703732
  • Convergence analysis of point-to-plane registration. Pottmann, H., Huang, Q.-X., Yang, Y.-L. and Hu, S.-M. (2006). Geometry and convergence analysis of algorithms for registration of 3D shapes. International Journal of Computer Vision, 67(3), 277-296. doi:10.1007/s11263-006-5167-2

Related methods not implemented here: Nuth, C. and Kaeaeb, A. (2011), The Cryosphere 5:271-290 (aspect/slope vertical-bias coregistration, provided as r.dem.nk); Segal, A., Haehnel, D. and Thrun, S. (2009), Generalized-ICP, Robotics: Science and Systems.

SEE ALSO

r.dem, r.dem.coregister, r.dem.nk

AUTHORS

Corey T. White, Center for Geospatial Analytics, NC State University
