i.hyper.explore

Visualize spectra from hyperspectral 3D raster maps.

i.hyper.explore [-p] map=name [,name,...] [coordinates=east,north [,east,north,...]] [points=name] [output=name] [dpi=integer] [style_scale=float] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

i.hyper.explore map=name

grass.script.run_command("i.hyper.explore", map, coordinates=None, points=None, output=None, dpi=300, style_scale=1.0, flags=None, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

gs.run_command("i.hyper.explore", map="name")

grass.tools.Tools.i_hyper_explore(map, coordinates=None, points=None, output=None, dpi=300, style_scale=1.0, flags=None, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

tools = Tools()
tools.i_hyper_explore(map="name")

This grass.tools API is experimental in version 8.5 and expected to be stable in version 8.6.

Parameters

map=name [,name,...] [required]
    Input 3D raster map(s) with hyperspectral data (comma-separated)
coordinates=east,north [,east,north,...]
    Comma separated list of coordinates
points=name
    Name of input vector map
    Point vector map with query locations
output=name
    Output plot file (.png, .pdf, .svg). If not set, opens an interactive window
    Name for output file
dpi=integer
    DPI value for output image (used only with output=)
    Default: 300
style_scale=float
    Scale factor for fonts and line widths when exporting (e.g., 1.8)
    Default: 1.0
-p
    Print JSON to stdout instead of plotting
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

map : str | list[str], required
    Input 3D raster map(s) with hyperspectral data (comma-separated)
    Used as: input, raster_3d, name
coordinates : list[tuple[float, float]] | tuple[float, float] | list[float] | str, optional
    Comma separated list of coordinates
    Used as: input, coords, east,north
points : str, optional
    Name of input vector map
    Point vector map with query locations
    Used as: input, vector, name
output : str, optional
    Output plot file (.png, .pdf, .svg). If not set, opens an interactive window
    Name for output file
    Used as: output, file, name
dpi : int, optional
    DPI value for output image (used only with output=)
    Default: 300
style_scale : float, optional
    Scale factor for fonts and line widths when exporting (e.g., 1.8)
    Default: 1.0
flags : str, optional
    Allowed values: p
    p
        Print JSON to stdout instead of plotting
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

map : str | list[str], required
    Input 3D raster map(s) with hyperspectral data (comma-separated)
    Used as: input, raster_3d, name
coordinates : list[tuple[float, float]] | tuple[float, float] | list[float] | str, optional
    Comma separated list of coordinates
    Used as: input, coords, east,north
points : str, optional
    Name of input vector map
    Point vector map with query locations
    Used as: input, vector, name
output : str, optional
    Output plot file (.png, .pdf, .svg). If not set, opens an interactive window
    Name for output file
    Used as: output, file, name
dpi : int, optional
    DPI value for output image (used only with output=)
    Default: 300
style_scale : float, optional
    Scale factor for fonts and line widths when exporting (e.g., 1.8)
    Default: 1.0
flags : str, optional
    Allowed values: p
    p
        Print JSON to stdout instead of plotting
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

Returns:

result : grass.tools.support.ToolResult | None
If the tool produces text as standard output, a ToolResult object will be returned. Otherwise, None will be returned.

Raises:

grass.tools.ToolError: When the tool ended with an error.

DESCRIPTION

i.hyper.explore visualizes spectra extracted from hyperspectral 3D raster maps (raster_3d). It allows users to interactively inspect spectral signatures at given map coordinates or from point vector maps. The module supports multiple 3D raster maps simultaneously for comparison (e.g., original data, preprocessed data, or reduced components).

Each queried location is sampled across all spectral bands using r3.what. The resulting spectral curves are plotted or printed in JSON format (with the -p flag). If an output file is specified (output=), the figure is exported instead of being shown interactively.

i.hyper.explore automatically reads wavelength metadata, measurement type (e.g., reflectance, radiance), and units from r3.info comments produced by i.hyper.import or i.hyper.preproc. If the map contains principal components or other dimensionally reduced features, the module detects this and adjusts the X-axis to component indices.

FUNCTIONALITY

  • Query spectra from one or more 3D raster maps at arbitrary locations.
  • Plot spectral curves for all queried points, automatically handling units and wavelength axes.
  • Detects whether the data represent reflectance, radiance, or dimensional components from metadata.
  • Export plots to .png, .pdf, or .svg via output=.
  • Optionally output structured JSON data for external analysis with the -p flag.
  • Automatically labels plots based on measurement type, units, and number of components.
  • Supports coordinate pairs (coordinates=) and vector point maps (points=).

NOTES

  • Each band's wavelength and FWHM must be stored as comments in r3.info (automatically handled by i.hyper.import).
  • The module uses r3.what to extract band values at each 2D location.
  • If the raster represents dimensional components (e.g., PCA, NMF), the plot's X-axis switches to "Components".
  • The output plot resolution can be set with dpi=.
  • Line width and font size can be scaled with style_scale= (default: 1.0).
  • Line colors correspond to query points; linestyles correspond to input maps.
  • Interactive plots support renaming legends and saving figures directly from the viewer.

EXAMPLES

::: code # Example 1: Compare spectra from EnMAP 3D raster map at two locations i.hyper.explore map=enmap@PERMANENT \ coordinates=4718536.78125,2587471.78125,4718504.625,2587623.375 :::

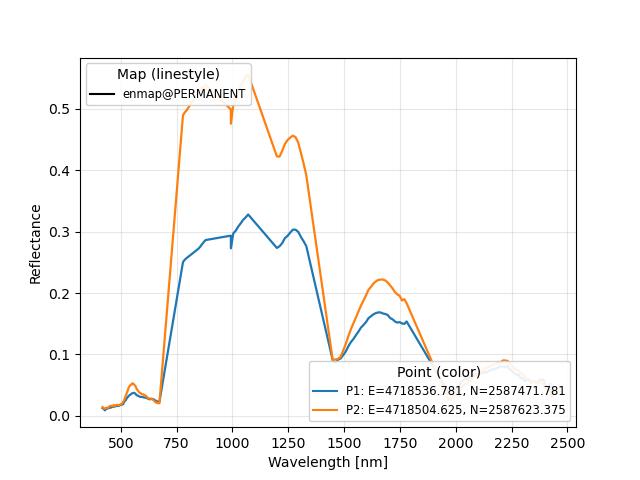

::: {align="center" style="margin: 10px"} Reflectance spectra{width="640" height="480" border="0"}\ Figure: Reflectance spectra plots generated with i.hyper.explore\ [Data source: Copyright © 2012--2025 EnMAP at Earth Observation Center EOC of DLR.]{.small} :::

::: code # Example 2: Explore multiple spectra from Tanager 3D raster map i.hyper.explore map=tanager@PERMANENT \ coordinates=481043.478,8184411.261,483979.826,8180452.435,472444.174,8181841.957 :::

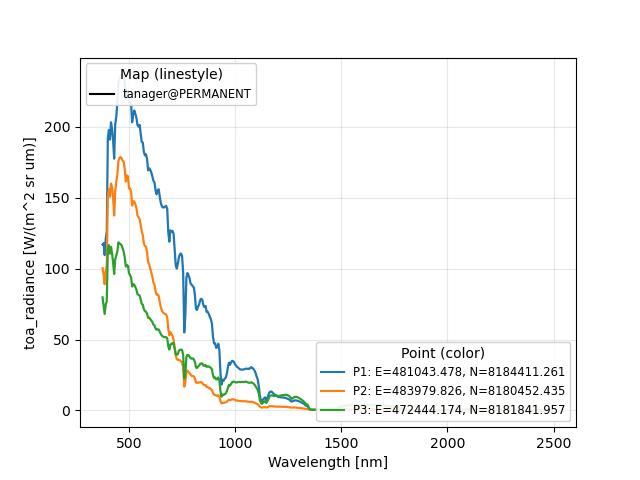

::: {align="center" style="margin: 10px"} Radiance spectra{width="640" height="480" border="0"}\ Figure: Radiance spectra plots generated with i.hyper.explore\ [Data source: Planet Labs -- Open Data, CC-BY-4.0.]{.small} :::

DEPENDENCIES

  • GRASS module: r3.what

AUTHORS

Tomaž Žagar and Alen Mangafić, Geodetic Institute of Slovenia

SOURCE CODE

Available at: i.hyper.explore source code (history)
Latest change: Monday Nov 17 15:45:17 2025 in commit 615887d
