v.surf.rst.cv
Performs cross-validation proceedure to optimize the parameterization of v.surf.rst tension and smoothing paramters.
v.surf.rst.cv point_cloud=name [mask=name] [tension=integer [,integer,...]] [smooth=float [,float,...]] [layer=string] [zcolumn=name] [where=sql_query] [segmax=integer] [dmin=float] [dmax=float] [zscale=float] [theta=float] [scalex=float] [cv_prefix=string] [output_file=name] [format=string] [nprocs=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]
Example:
v.surf.rst.cv point_cloud=name
grass.script.parse_command("v.surf.rst.cv", point_cloud, mask=None, tension=10, 20, 40, 60, 80, 100, smooth=0.01, 0.1, 0.5, 1.0, 5.0, 10.0, layer="1", zcolumn=None, where=None, segmax=40, dmin=0.0, dmax=0.0, zscale=1.0, theta=None, scalex=None, cv_prefix=None, output_file=None, format=None, nprocs=1, overwrite=False, verbose=False, quiet=False, superquiet=False)
Example:
gs.parse_command("v.surf.rst.cv", point_cloud="name")
Parameters
point_cloud=name [required]
Name of the input point cloud vector map
Name of the input point cloud vector map
mask=name
Mask raster map
Name of the mask raster map
tension=integer [,integer,...]
Tension parameter for cross-validation
Default: 10, 20, 40, 60, 80, 100
smooth=float [,float,...]
Smoothing parameter for cross-validation
Default: 0.01, 0.1, 0.5, 1.0, 5.0, 10.0
layer=string
Layer number or name
Vector features can have category values in different layers. This number determines which layer to use. When used with direct OGR access this is the layer name.
Default: 1
zcolumn=name
Name of the attribute column with values to be used for approximation
If not given and input is 2D vector map then category values are used. If input is 3D vector map then z-coordinates are used.
where=sql_query
WHERE conditions of SQL statement without 'where' keyword
Example: elevation < 500 and elevation >= 1
segmax=integer
Maximum number of points in segment
Default: 40
dmin=float
Minimum distance between points
Default: 0.0
dmax=float
Maximum distance between points on isoline (to insert additional points)
Default: 0.0
zscale=float
Conversion factor for values used for approximation
Default: 1.0
theta=float
Anisotropy angle (in degrees counterclockwise from East)
scalex=float
Anisotropy scaling factor
cv_prefix=string
Prefix to use for cross-validation output maps
Prefix to use for cross-validation output cross-validation errors vector point map. Value must be set to save the cross-validation errors to a vector maps.
output_file=name
Output file
Output file for the results (default: None) json or csv
format=string
Output format
Output format for the results
Allowed values: json, text
nprocs=integer
Number of threads for parallel computing
Default: 1
--overwrite
Allow output files to overwrite existing files
--help
Print usage summary
--verbose
Verbose module output
--quiet
Quiet module output
--qq
Very quiet module output
--ui
Force launching GUI dialog
point_cloud : str, required
Name of the input point cloud vector map
Name of the input point cloud vector map
Used as: input, vector, name
mask : str, optional
Mask raster map
Name of the mask raster map
Used as: input, raster, name
tension : int | list[int] | str, optional
Tension parameter for cross-validation
Default: 10, 20, 40, 60, 80, 100
smooth : float | list[float] | str, optional
Smoothing parameter for cross-validation
Default: 0.01, 0.1, 0.5, 1.0, 5.0, 10.0
layer : str, optional
Layer number or name
Vector features can have category values in different layers. This number determines which layer to use. When used with direct OGR access this is the layer name.
Used as: input, layer
Default: 1
zcolumn : str, optional
Name of the attribute column with values to be used for approximation
If not given and input is 2D vector map then category values are used. If input is 3D vector map then z-coordinates are used.
Used as: input, dbcolumn, name
where : str, optional
WHERE conditions of SQL statement without 'where' keyword
Example: elevation < 500 and elevation >= 1
Used as: input, sql_query, sql_query
segmax : int, optional
Maximum number of points in segment
Default: 40
dmin : float, optional
Minimum distance between points
Default: 0.0
dmax : float, optional
Maximum distance between points on isoline (to insert additional points)
Default: 0.0
zscale : float, optional
Conversion factor for values used for approximation
Default: 1.0
theta : float, optional
Anisotropy angle (in degrees counterclockwise from East)
scalex : float, optional
Anisotropy scaling factor
cv_prefix : str, optional
Prefix to use for cross-validation output maps
Prefix to use for cross-validation output cross-validation errors vector point map. Value must be set to save the cross-validation errors to a vector maps.
output_file : str, optional
Output file
Output file for the results (default: None) json or csv
Used as: output, file, name
format : str, optional
Output format
Output format for the results
Allowed values: json, text
nprocs : int, optional
Number of threads for parallel computing
Default: 1
overwrite: bool, optional
Allow output files to overwrite existing files
Default: False
verbose: bool, optional
Verbose module output
Default: False
quiet: bool, optional
Quiet module output
Default: False
superquiet: bool, optional
Very quiet module output
Default: False
DESCRIPTION
v.surf.rst.cv - Cross-validation of regularized spline with tension (RST) surface model.
Predictive error of surface approximation for given parameters are computed and a cross-validation procedure is then performed using the data given in the vector map input. The estimated predictive errors are stored in the optionally saved vector point map cvdev.
For larger data sets, CV should be applied to a representative subset of the data. The cross-validation procedure works well only for well-sampled phenomena and when minimizing the predictive error is the goal. The parameters found by minimizing the predictive (CV) error may not not be the best for for poorly sampled phenomena (result could be strongly smoothed with lost details and fluctuations) or when significant noise is present that needs to be smoothed out.
EXAMPLES
import grass.script as gs
gs.run_command(
"g.region",
raster="elevation",
res=30,
n=220790,
s=218390,
w=632680,
e=635910,
flags="a",
)
# Extract random elevation points from the DEM
gs.run_command(
"r.random",
input="elevation",
npoints=500,
seed=0,
vector="points",
flags="z",
overwrite=True,
)
# Run the cross validation proceedure
# using the random points
gs.run_command('v.surf.rst.cv',
point_cloud="points",
tension=[10, 100],
smooth=[0.5, 5.0],
segmax=600,
format="json",
output_file="test_cv.json",
cv_prefix='cvdev',
overwrite=True
)
By setting the output_file and format options the output of the above command will be a JSON file with the cross-validation results. The file will contain the following information:
[
{
"tension": "10",
"smooth": "0.5",
"rmse": 3.938792429360747,
"mae": 3.2086477739999997
},
{
"tension": "10",
"smooth": "5.0",
"rmse": 4.921535874096144,
"mae": 4.075445157999998
},
{
"tension": "100",
"smooth": "0.5",
"rmse": 2.715355217413409,
"mae": 2.0061099599999994
},
{
"tension": "100",
"smooth": "5.0",
"rmse": 3.438609351379808,
"mae": 2.73388017
}
]
A report of the best parameter combination and the RMSE and MAE values will be printed to the stderr.
Best parameter combination
--------------------------------------------------
Tension: 100
Smoothing: 0.5
RMSE: 2.715355217413409
MAE: 2.0061099599999994
--------------------------------------------------
When the cv_prefix option is set, the vector point maps with the
cross-validation results will be saved and interpolated into a new surface that
displays the residuals of the cross-validation. The surface will be saved in the
current mapset with the name <cv_prefix>_<tension>_<smooth>.

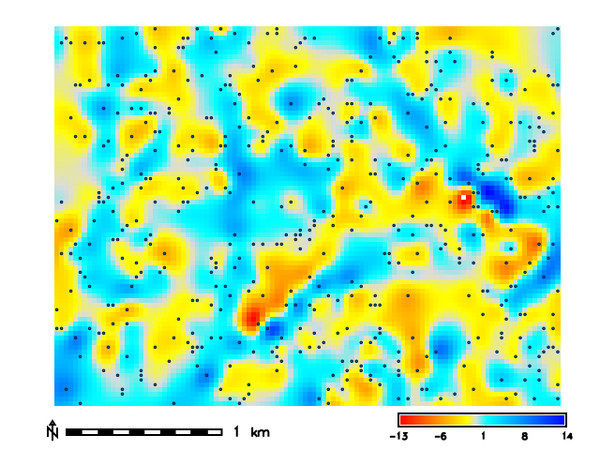

Tension: 100 Smooth: 0.5
Tension: 100 Smooth: 5

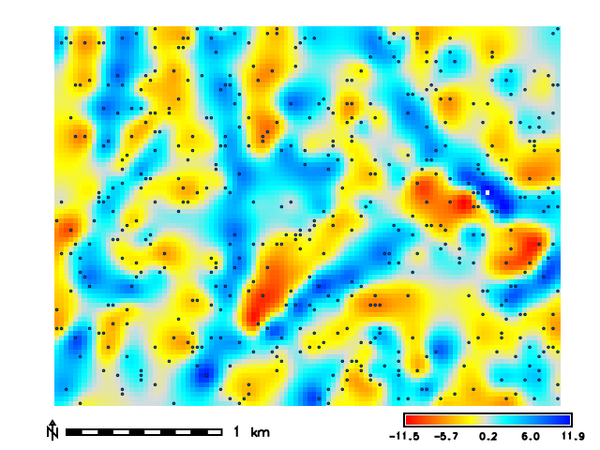

Tension: 10 Smooth: 0.5
Tension: 10 Smooth: 5
REFERENCES
- Mitasova, H., Mitas, L. and Harmon, R.S., 2005, Simultaneous spline approximation and topographic analysis for lidar elevation data in open source GIS, IEEE GRSL 2 (4), 375- 379.
- Hofierka, J., 2005, Interpolation of Radioactivity Data Using Regularized Spline with Tension. Applied GIS, Vol. 1, No. 2, pp. 16-01 to 16-13. DOI: 10.2104/ag050016
- Hofierka J., Parajka J., Mitasova H., Mitas L., 2002, Multivariate Interpolation of Precipitation Using Regularized Spline with Tension. Transactions in GIS 6(2), pp. 135-150.
- H. Mitasova, L. Mitas, B.M. Brown, D.P. Gerdes, I. Kosinovsky, 1995, Modeling spatially and temporally distributed phenomena: New methods and tools for GRASS GIS. International Journal of GIS, 9 (4), special issue on Integrating GIS and Environmental modeling, 433-446.
- Mitasova, H. and Mitas, L., 1993: Interpolation by Regularized Spline with Tension: I. Theory and Implementation, Mathematical Geology ,25, 641-655.
- Mitasova, H. and Hofierka, J., 1993: Interpolation by Regularized Spline with Tension: II. Application to Terrain Modeling and Surface Geometry Analysis, Mathematical Geology 25, 657-667.
- Mitas, L., and Mitasova H., 1988, General variational approach to the approximation problem, Computers and Mathematics with Applications, v.16, p. 983-992.
- Neteler, M. and Mitasova, H., 2008, Open Source GIS: A GRASS GIS Approach, 3rd Edition, Springer, New York, 406 pages.
- Talmi, A. and Gilat, G., 1977 : Method for Smooth Approximation of Data, Journal of Computational Physics, 23, p.93-123.
- Wahba, G., 1990, : Spline Models for Observational Data, CNMS-NSF Regional Conference series in applied mathematics, 59, SIAM, Philadelphia, Pennsylvania.
SEE ALSO
AUTHORS
Corey T. White NCSU GeoForAll Lab
